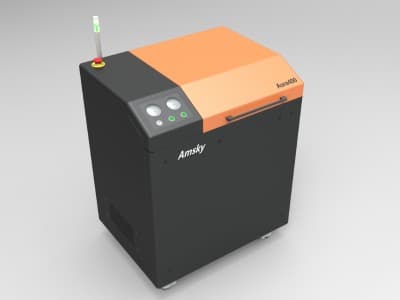

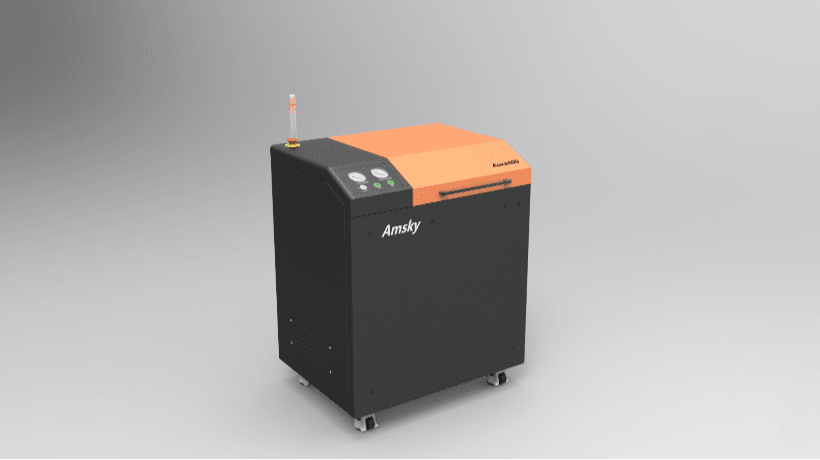

Aura 400
430 × 330 mm 컴팩트 플렉소·레터프레스 CTP
소형 인쇄 환경에 맞춰 설계된 Aura 400은 안정적인 레이저 제어와 간편한 유지 관리로 일관된 판재 품질을 제공합니다.
Specification
Aura 400 설비 사양
| Model | Aura 400 |
|---|---|
| Laser Channel | 16CH |
| Output Speed | 1.23m²/h |
| Max.output size | 17" X 12" / 430mm X 330mm |
| Plate Thickness | 0.14mm ~ 1.7mm |
| Plate Type | Heat corrosivefilm, Digital watersashed letterpress, Digital waterswashed flexo plate, Digital solventwashed flexo plate, Thermal Ps plate* *Plate thickness is 0.15mm max and adhesive tape is needed on three sides edge |
| Application | Label, trademark |
| Resolution | 4,000dpi |
| Plate Loading | Manual load and unload |
| Interface | USB2.0 |
| Focus Adjust | Autofocus |
| Laser Power | High power semiconductor laser diode |
| Device Size | 830 X 690 X 1,055mm (L X D X H) |
| Net Weight | About 280kg |
| Power | 220V/50Hz, 60Hz Mainframe 0.5kw, Vacuum 2.0KW |
| Environment | Recommended Temperature: 18~30℃, Humidity: 10% ~ 80% |
