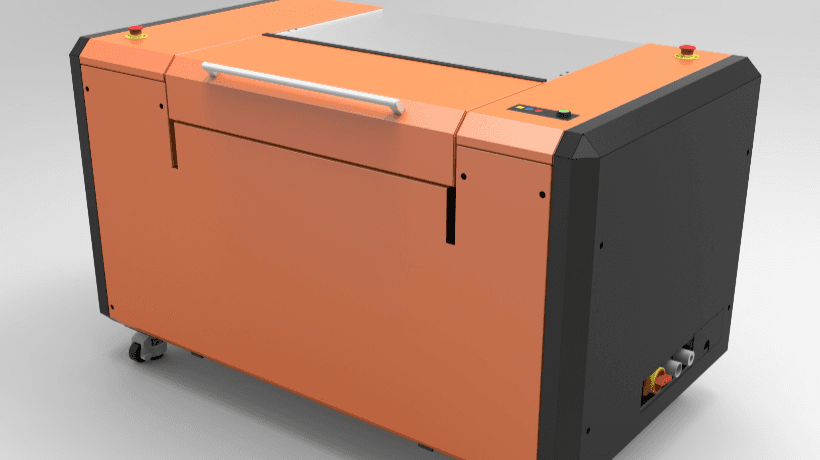

Aura 800
대형 플렉소·패키징 시장을 위한 VLF CTP 장비
64채널 파이버 레이저와 자동 로딩 시스템을 갖춘 Aura 800은 대형 판재 작업에서도 빠르고 균일한 품질을 제공합니다.
Specification
Aura 800 설비 사양
| Model | Aura 800E Aura 800S |
|---|---|
| Laser Channel | 16CH 32CH |
| Output Speed | 1.25m²/h 2.5m²/h |
| Max.output size | 31" × 27" / 790mm × 690mm |
| Plate Thickness | 0.14mm~2.84mm |
| Plate Type | Heat corrosivefilm. Digital waterwashed letterpress. Digital waterwashed flexo plate. Digital solventwashed flexo plate. Thermal PS plate* *Plate thickness is 0.15mm max and adhesive tape is needed on three sides edge |
| Application | Label, trademark |
| Resolution | 4,000dpi |
| Plate Loading | Manual load and unload |
| Interface | USB2.0 |
| Focus Adjust | Autofocus |
| Laser Power | High power semiconductor laser diode |
| Device Size | 1,610×910×980mm (L×D×H) |
| Net Weight | About 640kg |
| Power | 220V/50Hz, 60Hz Mainframe 1.5kw,Vacuum 2.0KW |
| Environment | Recommended Temperature: 18~30℃, Humidity: 10%~80% |
