Stable printing is paramount
Ingenious craftsmanship reflects our profound understanding of the foundry industry's craftsmanship and our sincere concern for our users' needs. We fuse humanistic care with technological innovation , like the perfect union of poetry and distant horizons. We make every print a showcase of creativity, transforming cutting-edge industrial design into ultimate performance, letting your creativity run wild and experiencing the perfect fusion of speed and passion .
flexible
No restrictions

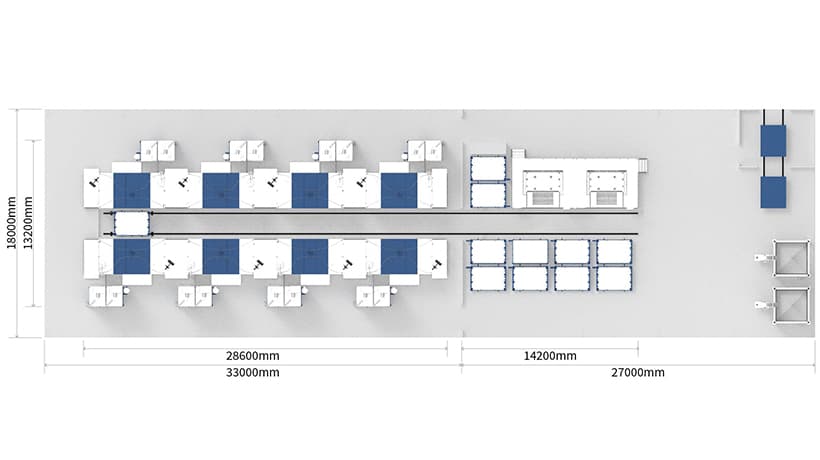

Modular independent design + track-type flexible layout,
Break through site limitations. Self-circulating temperature control system ensures stable operation in extreme environments.
Clean sand
automation
Automatic basement sand cleaning reduces manual intervention.
Open all-dimensional process parameters to give users complete control over the process.
BTHS2515 Technical Parameters
- Working box inner dimensions2,550x1,550x1,020mm
- Forming size (length x width x height)2,500x1,500x1,000mm
- ConsumablesFuran resin or phenolic resin, curing agent, raw sand
- Layer thickness0.1-0.5mm
- Print resolution400 dpi; up to 800 dpi
- Molding accuracy±0.3mm when ≤1500mm; ±0.5mm (max) when >1500mm
- nozzle12 AMSKY 512 printheads, 60PL ink droplets
- Print speed17.5s~22s/layer
- Number of work boxesStandard dual working boxes with independent drive and take turns printing
- Feeding methodAutomatic sand processing + mixing of new and old sand in any proportion

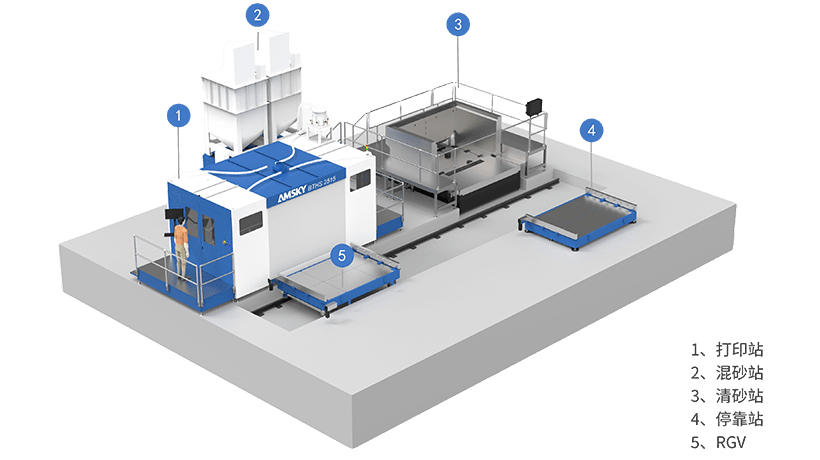

- Structural formStructural frame + linear motor + rail car + sand cleaning and mold removal station
- noise<65dB
- Host size (length x width x height)7,600x3,600x3,100mm
- Floor space of the complete equipment (length x width x height)14,600x9,300x4,500mm
- Net weight of equipmentThe main engine weighs 16 tons, and the total weight of the whole set is about 25 tons
- Environmental requirementsWorking temperature: 22-38°C Relative humidity: <55%
